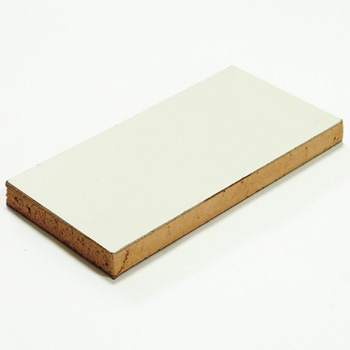

Non Spontaneous Combustion Composite Panel
Non
Spontaneous Combustion Composite Panel With the
latest state-of-the-art mold pressing technology, we creatively develop PROWANG
Non Spontaneous Combustion Composite Panel, a high molecule Polyvinyl Chloride
adhering sandwich construction panel. Our High Quality and Various Design with
Competitive Price could meet your needs without doubt.
Application
A.
Exterior and Interior Design of
Modern Construction, such as Airports, gymnasiums, hotels etc.
B.
Tunnel Walls, Sky bridges, Rain
Shield of Balconies or Attics, Garage Shields etc.
C.
Body Construction Usage in Cars,
Buses or Yachts.
D.
Ceiling or Toilet Partition,
Doors, Walls, Pillars, Ambries, Furniture etc.
E.
Elevators, Escalators, Automated
Teller Machines etc.
F.
Exterior of Shopping Windows or
Billboards etc.
G.
Special Usage in Laboratories or
White Rooms etc.
Charateristic
Various
Material、Flatness、Corrosion
Resistance、Impact Resistance、Thermal
Conduction、Soundproof、
Waterproof、Non
Spontaneous Combustion、Workability、Easy
Maintenance、Easy Assemble.
Standard
Size
910mm * 1810mm * designated thickness & length
1200mm * 2440mm * designated thickness & length
1520mm *
3050mm * designated thickness & length
Particular
Size
910mm * 20000mm
within
1220mm *
20000mm within
1520mm *
20000mm within
2400mm * 20000mm within
(Coated Aluminum Alloy Sheet / Thickness 0.2mm or
above)
Exterior Sheet Material
1.
Coated Steel Sheet - PVDF
weather durable coating, designated color and thickness.
2.
Aluminum Alloy Sheet - PVDF weather durable coating,
designated color and thickness.
3.
Stainless Steel Sheet - PVDF weather
durable coating, designated color and thickness.
4.

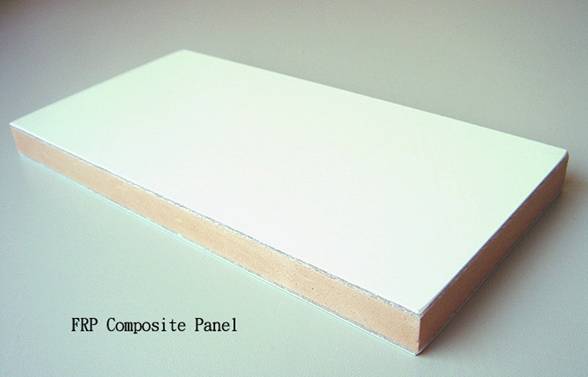

FRP Composite Sheet - Designated color and thickness.
5.
Rigid Plastic Sheet -
Designated color and thickness.
6.
Laminate Sheet -
Designated color and thickness.
Core Material
Thickness:
2mm~100mm.
Hardness:
80, 90, 98 Shore C.
Density: 80 Shore C - 0.12g/cm3
98
Shore C - 0.86g/cm3
Density Range
90 ~ 2000 kg/
m3
General Properties of Coated Steel Sheet
|
Item |
Standard |
Property |
Specular Gloss |
ASTM D523-89 |
61 |
|
Hardness by Pencil Test |
ASTM D3363 |
3H |
|
Adhesion by Tape Test |
ASTM D3359-02 |
5B (None Removed) |
|
Impact Resistance |
ASTM D2794-93 |
No Crack, Peer or Deformation Due to Impact |
|
Abrasion Test |
ASTM D968-03 |
10 L/Mil |
|
Chemical Resistance |
ASTM D1308-02e1 ASTM D2248-01a ASTM D2244-02e1 |
No Visible Damage |
|
Temperature & Humidity Test |
ASTM D2247-02 |
No Visible Damage |
|
Mortar Test |
AAMA 605.2-85 |
No Visible Damage |
|
Deflection Temperature |
ASTM D648-01 |
Over 190
oC |
|
Liner Thermal Expansion |
ASTM D696-03 |
69. 24 µm/m oC |
|
Flexural Properties |
ASTM D790-03 |
57 kgf/cm2 |
|
Density |
ASTM D792-00 |
0.52 g/cm3 |
|
Tensile Test |
ASTM E8-04 |
Tensile Strength: 4116 kgf/ cm2 Yield Strength: 3990 kgf/ cm2 Elongation: 26.3 % |
|
Thermal Transmission
Properties |
ASTM C177-97 |
Thermal Conductivity: 0.0339
W/m K Thermal Resistance: 0.4181 m2 K/W |
(ASTM Standard Test)
